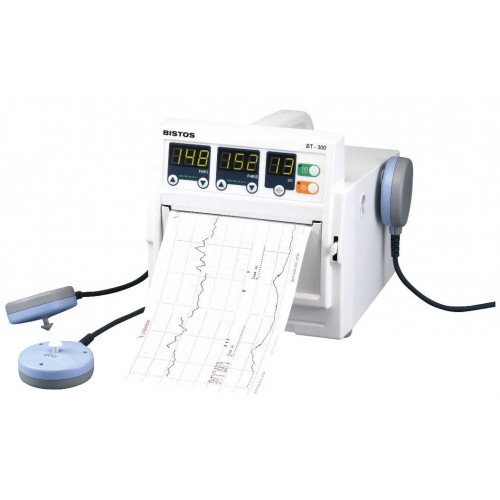

BT-300 Fetal Monitor
The BT-300 Antepartum Fetal Monitor, portable and easy to use. The printer utilizes a thermal array type and paper feeding function. Plus, you can adjust the print speed and contrast. Unlimited multilingual support is included.
Features and Benefits
Compact and light
Easy-to-use
High sensitivity, probe-frequency 1 MHz
External uterine-contraction
Fetal Movement
Ergonomic designed event mark
Technical Specifications
FHR
Ultrasound Frequency: 1 MHz
Intensity: ≤10 mW/cm
FHR Range: 50 -240 bpm
FHR Accuracy: ±2 % of Range
FM
Fetal Movement
UC
External Type
Reference (zero) Control
Measurement Range: 0-99 units
Printer
Thermal Array Type
Print Speed: 1, 2, 3 cm/min
Paper Feeding Function
Display
7-Segment LED
3 Channels (FHR I, FHR II, UC)
Sound
Doppler Sound
Alarm Sound
Information Sound
Set-up
Alarm Upper/ Lower Limit Value
Print Speed, Print Contrast
Function
Mark Function
FHR II Offset Function
Auto Print Function
Power
Input: AC 100-240 V (50/60 Hz)
Output: DC 16 V, 2.8 A
Consumption: 80 VA
Dimension
191(H) x 187(L) x 201(D) mm
Materials Included
Ultrasound Doppler Probes (2ea)
UC Probe (1ea)
Event Marker Jack (1ea)
Print Paper (1ea)
Power Adaptor & Cord (1ea)
Ultrasound Gel (1ea)
Probe Belt (3ea)
Operation Manual (1ea)
Warranty Information
2-year
